How to reduce the occurrence of burrs in the laser cutting production

How to reduce the occurrence of burrs in the laser cutting production

How to reduce the occurrence of burrs in the laser cutting production First check if there is a problem with the laser output. Is the spotted spot very round (the circle indicates that the lateral distribution of the laser energy is uniform and the cutting quality is good) Check if the lens in the laser transmission process is dirty, or if the lens is dirty, and the lens has small cracks that are not easily visible to the naked eye, which will affect the transmission of the laser. This is followed by an adjustment of the process parameters. If the burrs generated after laser cutting of stainless steel have a certain hardness, it is very difficult to take time and affect the appearance. It is best to solve it from the root cause. First of all, the purity of the auxiliary gas is high, and it is very important to change the purity of a gas supplier with a better quality. Then the anti-cutting parameters are adjusted to the best, the focal length, cutting speed, power, running time, etc. Sub-adjustment (please let the professional engineer debug), the parameters provided by the machine can not cut the delicate workpiece, so only after many attempts can the burr be minimized

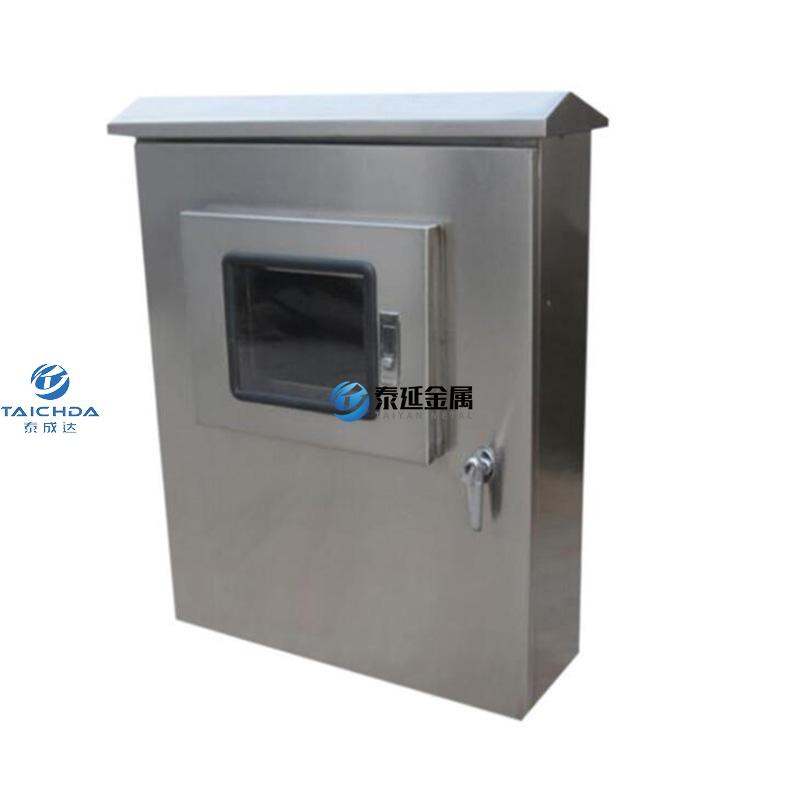

Waterproof Stainless Steel Electrical Enclosures

Custom made waterproof cabinet Enclosure 304 316 ss304 ss316 Sus304 sus316 ip65 control panel box
  • Item NO.:

    0014-ECPB-TCH
  • Product Details

 Waterproof SS304 electrical panel enclosure

Features:

* Material: stainless steel 304,316,201

* Thickness: 1.2mm,1.5mm,2.00mm

* Dimension:500mm x 700mm x 250mm

* Door: single door

* Spare parts: back mounting plate, lock, hinge

* Surface treatment: Polishing, brushing

* Installation: outdoor floor

* Function: water-proof electric enclosure

* Certificate: CE

*Working environment: air port, building, hotel, shopping centre, housing estate, school,

Factory, port, highway.





Specifications:

Part Number

Enclosure Dimensions

Mounting plate dimensions

0016-ECPB-TCH

200 ×300 ×150

150 × 250

0017-ECPB-TCH

300 ×300 ×150

250 × 250

0018-ECPB-TCH

300 ×400 ×150

250 × 350

0008-ECPB-TCH

300 ×400 ×200

250 × 350

0009-ECPB-TCH

400 ×400 ×200

350 × 350

0010-ECPB-TCH

400 ×500 ×200

350 × 450

0011-ECPB-TCH

400 ×600 ×200

350 × 550

0012-ECPB-TCH

600 ×600 ×200

550 × 550

0013-ECPB-TCH

600 ×800 ×200

550 × 750

0014-ECPB-TCH

500 ×700 ×250

450 × 650

0015-ECPB-TCH

600 ×600 ×300

550 × 550





Services : laser cutting,  CNC punching,  bending,  drilling, tapping, welding,  polishing,  brushing,  sandblasting,  zinc plated,  hot dipped galvanized, painting,  coating, nickel plating , deactivation , electroplating, oxidation, assembly, packing, etc..

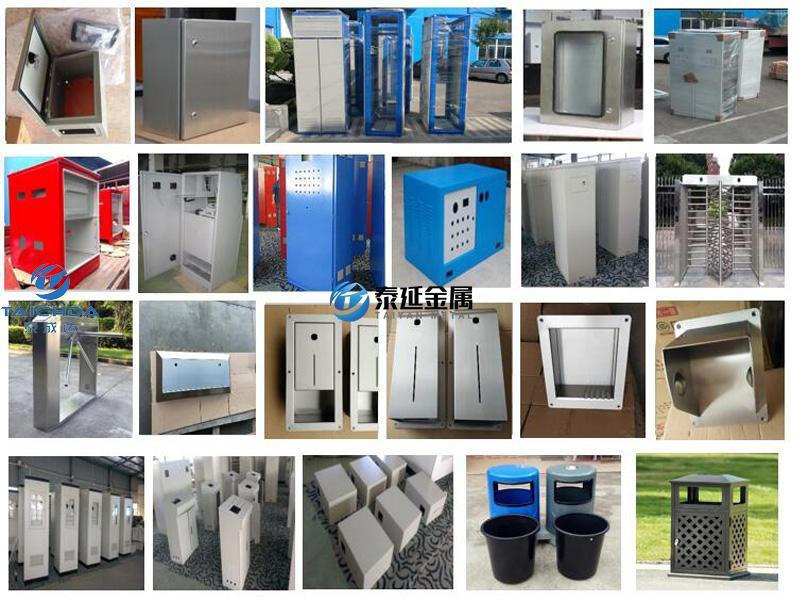

Zhangzhou Taiyan Metal Co., Ltd is a sheet metal fabricated manufacturer. Many kinds of steel cabinets and enclosures made of stainless steel and mild steel material here we do the custom production, such as  medical security console box, gas floor pedestal, turnstile, wing gates, electric control panel cabinets, gates operator covers, washroom dispensers, switch button control cabinets, IP NEMA enclosures, RITTAL power control cabinets, distribution panel boxes, high and low voltage distribution cabinet, UPS power supply cabinet, power boxes, instrument case, meter boxes, console boxes, electrical operator tables, sheet metal laser cutting parts, punching parts, rolling circularity parts etc..

Most of these sheet metal enclosures and cabinets are used in Access Control System, Power Control System, Gates Operator System, Health Care System, Air Compressor System, Natural Gas System, Compressed Air Refrigeration System, Compressed Air Dryer, Water Air Conditioning System, Sterilization Machine, Frequency Conversion Pump Unit, Oil And Gas Industry and so on.
