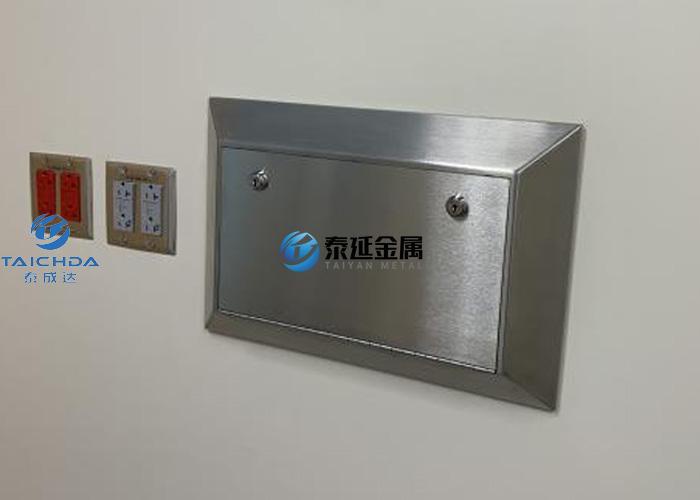

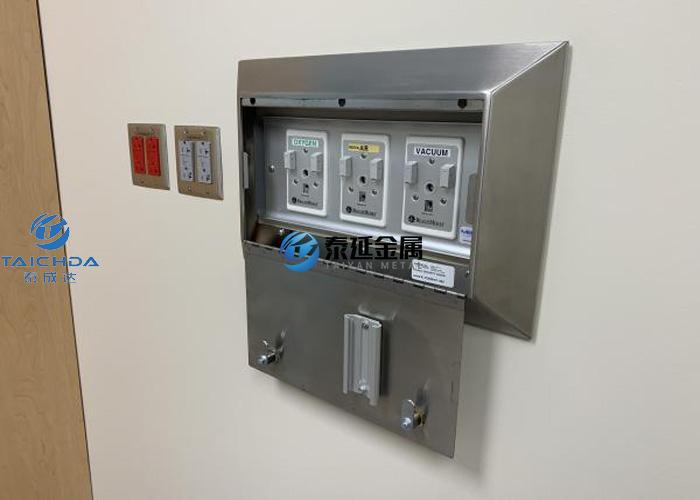

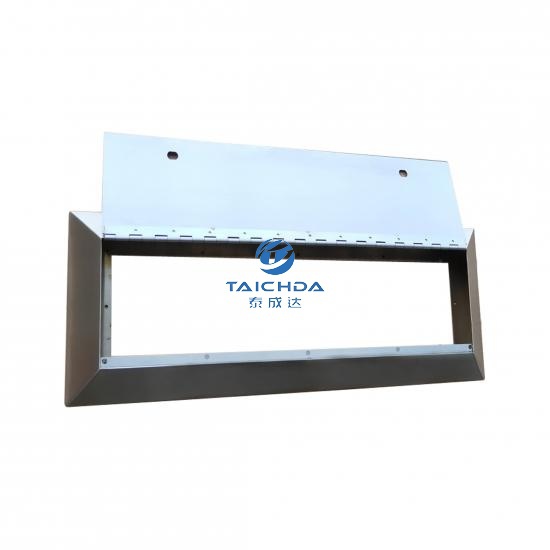

Medical gas headwall SS304 security console box recessed

SS304 wall mounted console security cover architectural headwalls hospital. It is  built to protect the medical gas and electrical services from unwanted tampering.
  • Item NO.:

    0001-RSCB-TCH
  • Price Range:

    300 - 500/$100.76
  • Product Details

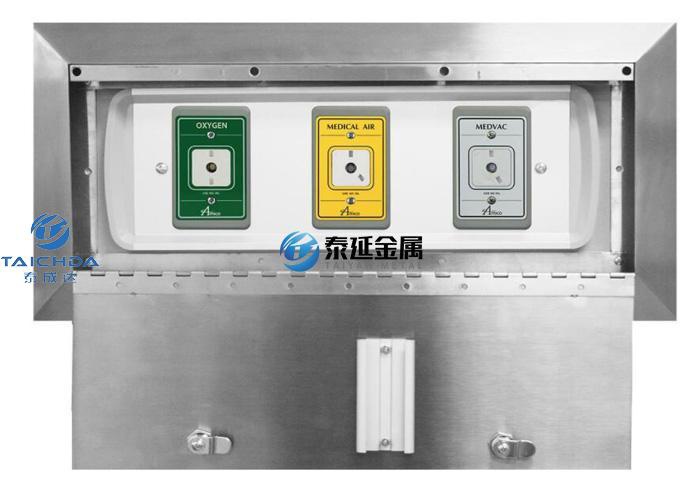

The medical security console box is a recessed horizontal bed head unit built to protect the medical gas and electrical services from unwanted tampering.

  • Made of high quality 304 stainless steel for durability.
  • Recessed horizontal medical headwall box.
  • Stainless steel door with lock (available with or without the recessed medical gas box)
    Up to 5 services per security door.
  • NFPA Compliant.
  • Precision sheet metal processing, accurate size, full and smooth welding, smooth and even polishing, clear brushed texture.
  • No welding slag, no burrs, beautiful appearance, customers can use with confidence.


Specification:

Material:SS201,SS304,SS316
Thickness:GA.#14,GA.#16
Dimension:540 x 292mm x 51mm
Surface treatment: satin/brushing
Usage:hospital





Basic Steps for Installing the PCS Patient Security Service
Console
• Prepare stud wall to accommodate backbox

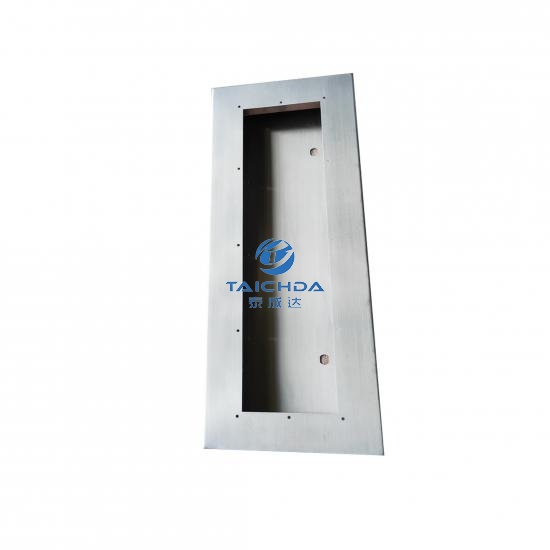

• Mount backbox in stud cavity
• Mount and connect medical gas outlet rough-in and test joints for leaks
• Connect all electrical and communication conduits
• Install drywall and finish building wall
• Pull in all electrical wires and communication cables
• Mount security fascia and security door
• Install all electrical and communication devices
• Install latch plates for all medical gas outlets
• Test and clean

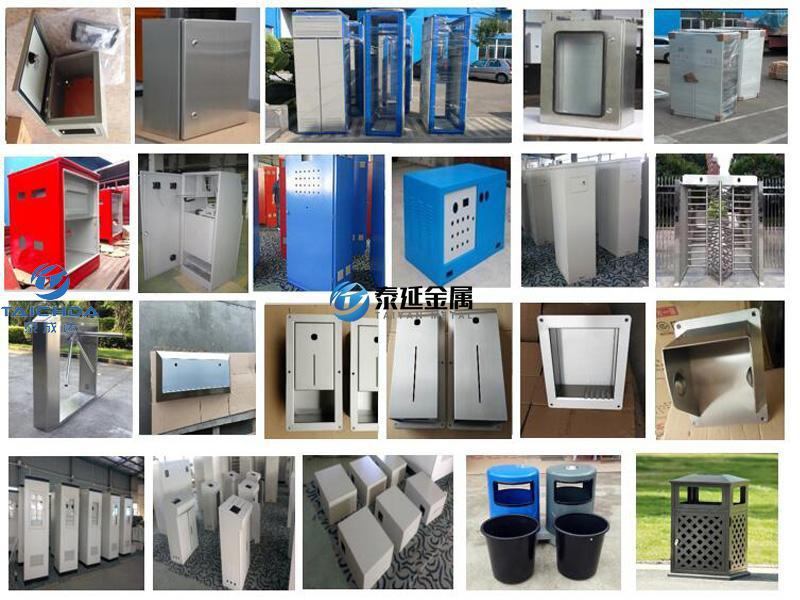

Zhangzhou Taiyan Metal Co., Ltd is a sheet metal fabricated manufacturer. Many kinds of steel cabinets and enclosures made of stainless steel and mild steel material here we do the custom production, such as  medical security console box, gas floor pedestal, turnstile, wing gates, electric control panel cabinets, gates operator covers, washroom dispensers, switch button control cabinets, IP NEMA enclosures, RITTAL power control cabinets, distribution panel boxes, high and low voltage distribution cabinet, UPS power supply cabinet, power boxes, instrument case, meter boxes, console boxes, electrical operator tables, sheet metal laser cutting parts, punching parts, rolling circularity parts etc..

Most of these sheet metal enclosures and cabinets are used in Access Control System, Power Control System, Gates Operator System, Health Care System, Air Compressor System, Natural Gas System, Compressed Air Refrigeration System, Compressed Air Dryer, Water Air Conditioning System, Sterilization Machine, Frequency Conversion Pump Unit, Oil And Gas Industry and so on.



FAQ:

Q1. May I have a sample first?

A: Yes, we would like to make sample for your checking first. Mixed samples are acceptable.

Q2. What about the lead time?

A: It needs 3-5 working days for sample, 5-8 working days for bulk order usually.

Q3. Do you have any MOQ for order?

A: Low MOQ, it's according to the request of different products.

Q4. How do you ship the goods and how long does it take to arrive?

A: For Bulk order, we usually ship the goods by sea, it will take about 30 days to arrive to your sea port. For small or urgent order, we usually ship by air or international express (DHL, UPS, FedEx, TNT etc.), it usually takes 3-5 days to arrive. All the shipment terms shall be accorded to your request.

Q5.Can you customize the metal products according to my design and make my own brand logo?

A: Yes. We are the sheet metal fabrication manufacturer, we can do the custom production. Please kindly send us your detailed request (drawing, photos etc.), so we will make according to you design. As brand logo, we usually do by silk screen, laser etching etc., please tell us the style and sizes for our making.

Q6. What is the quality control do you have?

All products have to pass strict inspection before they were sent out.
We believe that the quality is the soul of an enterprise. Therefore, we always put quality as the first consideration.
