Waterproof SS Control Boxes

Waterproof SS Control Boxes, Electric Control Boxes, Telecom electrical systems enclosures

Item NO.:
0009-ECPB-TCH

Contact Now

Product Details

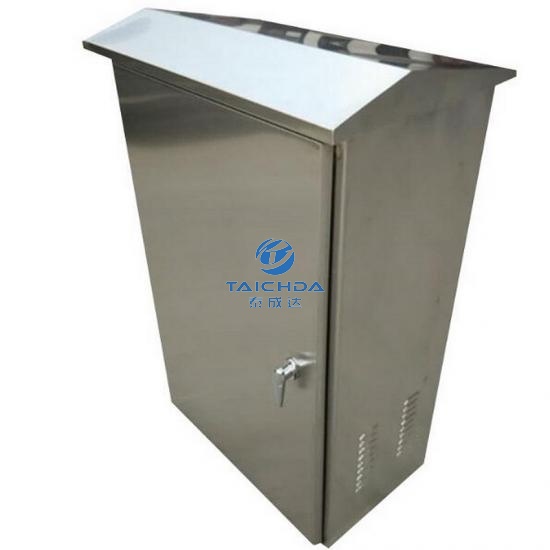

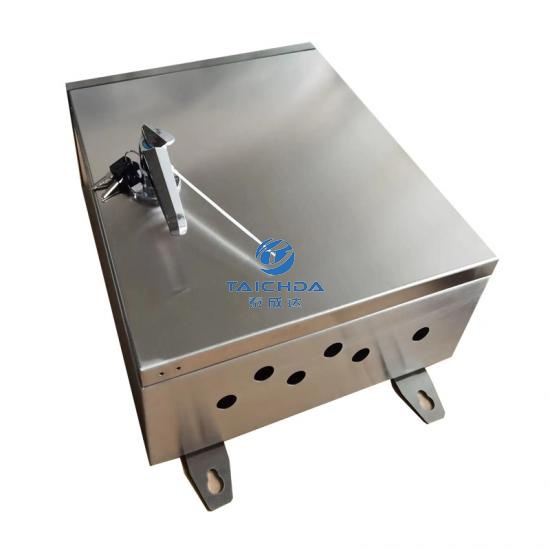

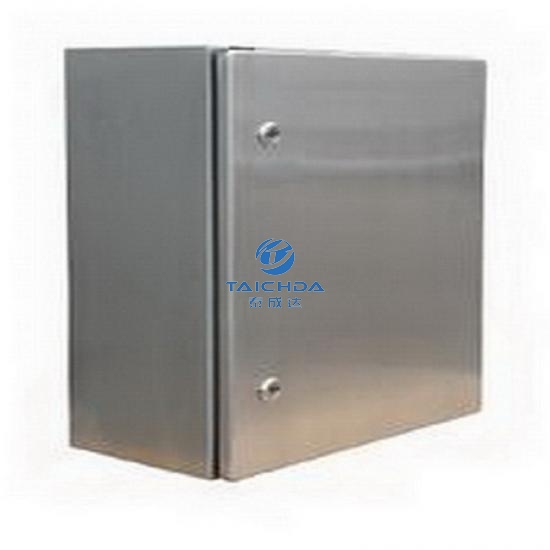

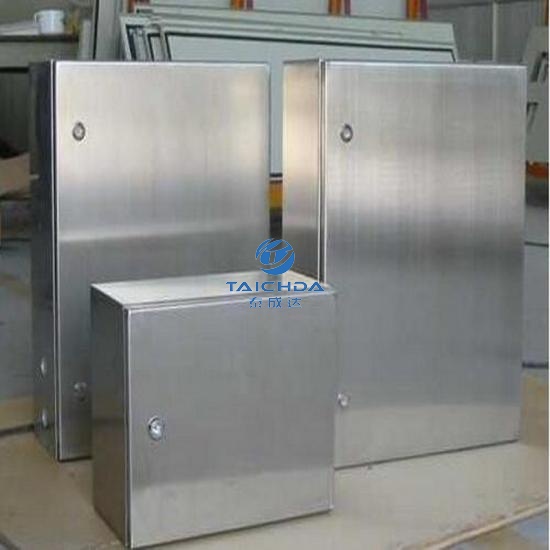

Waterproof SS304 Control Boxes

Feature:

* Material: stainless steel 304,316,201

* Thickness: 1.2mm,1.5mm

* Dimension:400mm x 400mm x 200mm

* Door: single door

* Spare parts: back mounting plate, lock, hinge

* Surface treatment: Polishing, brushing

* Installation: indoor/outdoor wall mounted

* Function: Power control

* Certificate: CE

* Working environment: air port, building, hotel, shopping centre, housing estate, school,

Factory, port, natural gas.

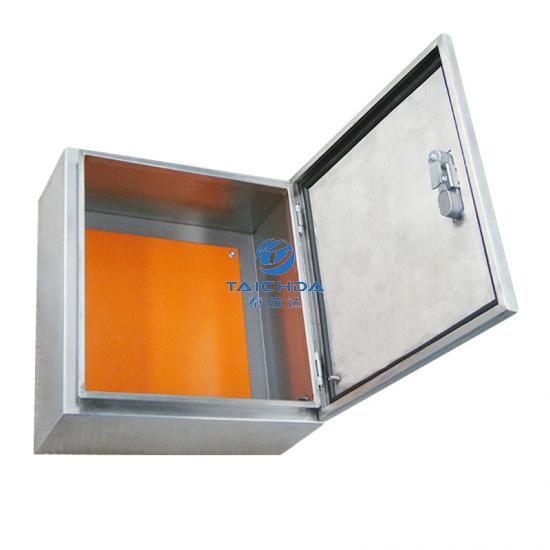

Walterproof control box all use stainless steel welded plate bending, non indoor and outdoor type. To do perspective windows and doors, door with sealing rubber strip. To prevent the infiltration of rainwater, the box body is equipped with outlet holes and mounting plate, the outlet hole is factory is additionally provided with a sealing plate.

Product Description

stainless steel distribution box

1. Material: SUS304(Other material can be optional)

2. Surface Treatment: Wire Drawing,Mounting Plate is Galvanized

3. Class of Protection: IP65, PU Foaming Sealing

Specifications:

Part Number	Enclosure Dimensions	Mounting plate dimensions
0016-ECPB-TCH	200 ×300 ×150	150 × 250
0017-ECPB-TCH	300 ×300 ×150	250 × 250
0018-ECPB-TCH	300 ×400 ×150	250 × 350
0008-ECPB-TCH	300 ×400 ×200	250 × 350
0009-ECPB-TCH	400 ×400 ×200	350 × 350
0010-ECPB-TCH	400 ×500 ×200	350 × 450
0011-ECPB-TCH	400 ×600 ×200	350 × 550
0012-ECPB-TCH	600 ×600 ×200	550 × 550
0013-ECPB-TCH	600 ×800 ×200	550 × 750

Zhangzhou Taichengda Metal Products Co., Ltd is a sheet metal fabricated manufacturer. Many kinds of steel cabinets and enclosures made of stainless steel and mild steel material here we do the custom production, such as electric control panel cabinets, gates operator covers, washroom dispensers, switch button control cabinets, IP NEMA enclosures, RITTAL power control cabinets, distribution panel boxes, high and low voltage distribution cabinet, UPS power supply cabinet, power boxes, instrument case, meter boxes, console boxes, electrical operator tables, sheet metal laser cutting parts, punching parts, rolling circularity parts etc..

Most of these sheet metal enclosures and cabinets are used in Power Control System, Gates Operator System, Health Care System, Air Compressor System, Natural Gas System, Compressed Air Refrigeration System, Compressed Air Dryer, Water Air Conditioning System, Sterilization Machine, Frequency Conversion Pump Unit, Oil And Gas Industry and so on.

With more than 15 years experience, our company and products have been approved by ISO, SGS,CCC, RoHS and IP65 certification. Come on with us ,please! Good quality products with best price here will be always offered to you.
