IP66 IP65 IP55 Sheet Metal Electrical Enclosures

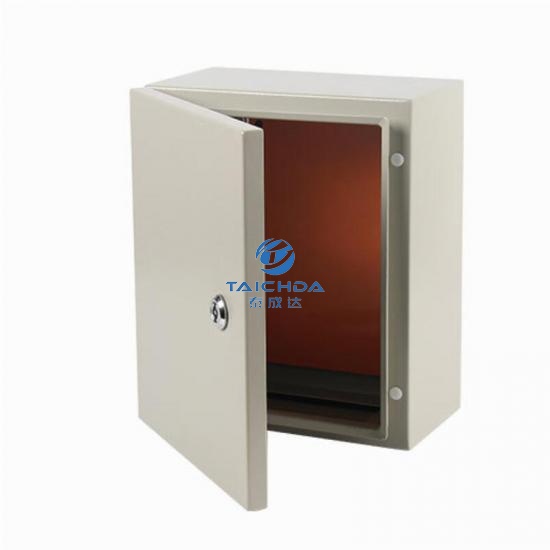

IP65 Wall Mounted Enclosure

Painted in RAL7032/7035,IP65,Door&Body:1.2,M.P:1.5mm,till size 800mm,Door&Body:1.5mm M.P:2.0mm

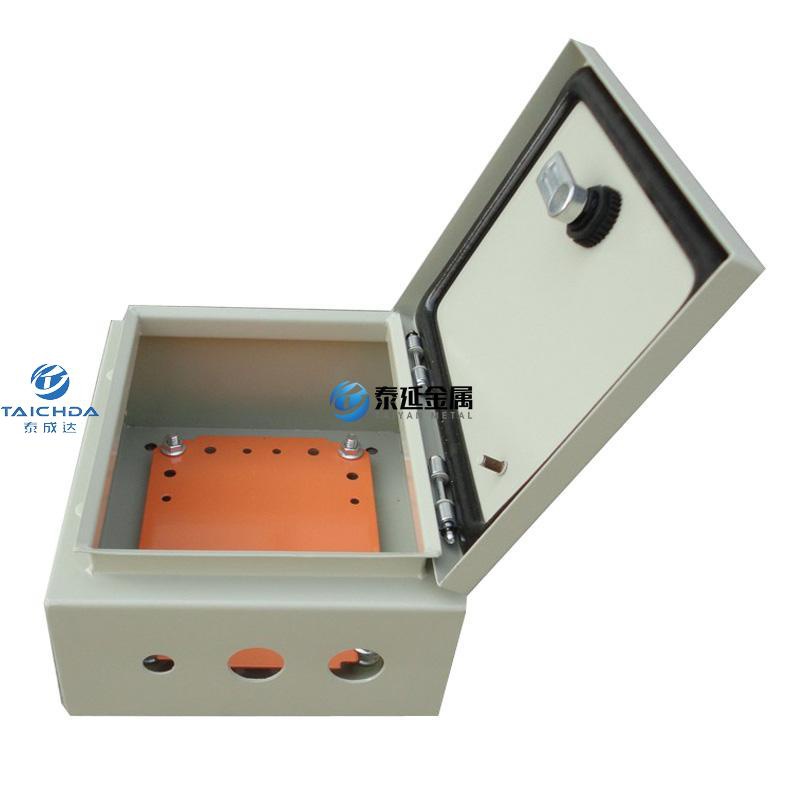

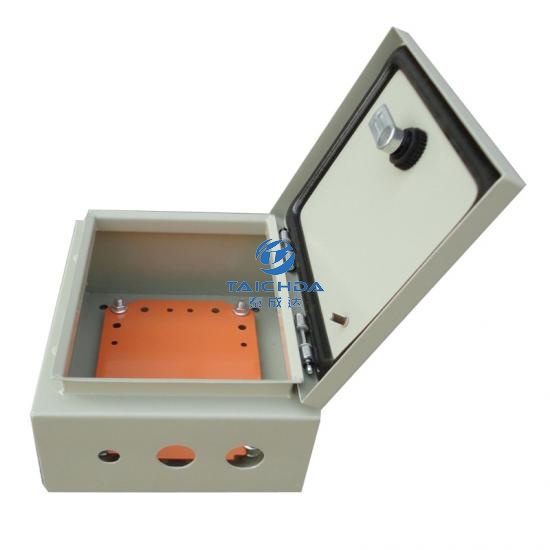

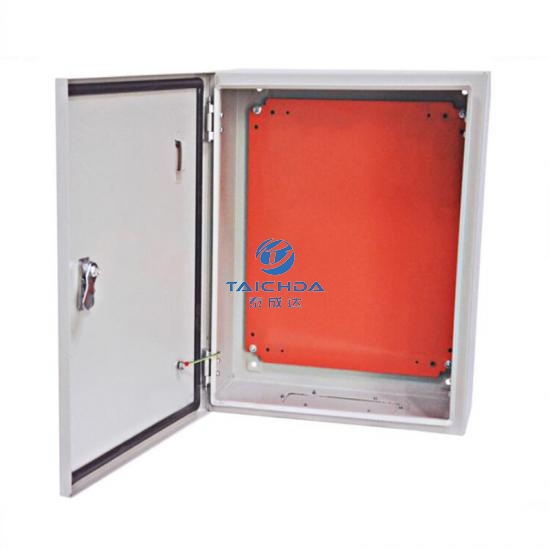

Wall Mounting Enclosure(distribution box)

Enclosure& door: sheet steel 1.2mm-- 1.5mm

-Mounting plate: sheet steel 1.5mm-- 2.0mm

Surface Finish

-Enclosure & door: thermosetting epoxy polyester powder coating in textured RAL7032/RAL7035

-Mounting plate: zinc coated or RAL2000 in textured

Protection degree

-IP65 NEMA 4 for single door boxes

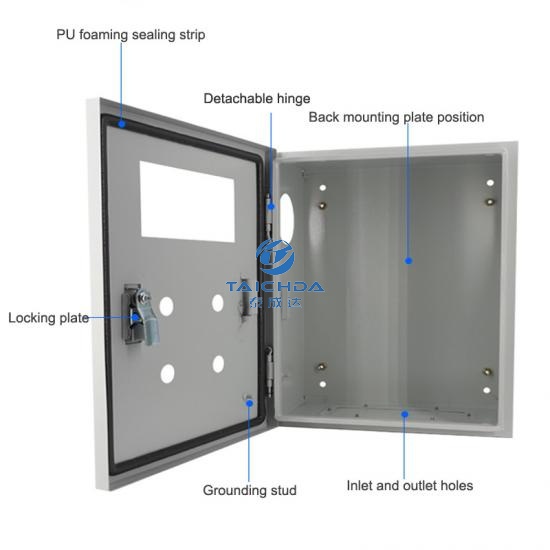

Supply includes

-Mounting plate

-gland plate and sealing gasket

-locking system

-screws for earthing

-fixing material

Zhangzhou Taiyan Metal Co., Ltd is a sheet metal fabricated manufacturer. Many kinds of steel cabinets and enclosures made of stainless steel and mild steel material here we do the custom production, such as  medical security console box, gas floor pedestal, turnstile, wing gates, electric control panel cabinets, gates operator covers, washroom dispensers, switch button control cabinets, IP NEMA enclosures, RITTAL power control cabinets, distribution panel boxes, high and low voltage distribution cabinet, UPS power supply cabinet, power boxes, instrument case, meter boxes, console boxes, electrical operator tables, sheet metal laser cutting parts, punching parts, rolling circularity parts etc..

Most of these sheet metal enclosures and cabinets are used in Access Control System, Power Control System, Gates Operator System, Health Care System, Air Compressor System, Natural Gas System, Compressed Air Refrigeration System, Compressed Air Dryer, Water Air Conditioning System, Sterilization Machine, Frequency Conversion Pump Unit, Oil And Gas Industry and so on.

Services : laser cutting,  CNC punching,  bending,  drilling, tapping, welding,  polishing,  brushing,  sandblasting,  zinc plated,  hot dipped galvanized, painting,  coating, nickel plating , deactivation , electroplating, oxidation, assembly, packing, etc..
