How to reduce the occurrence of burrs in the laser cutting production  First check if there is a problem with the laser output. Is the spotted spot very round (the circle indicates that the lateral distribution of the laser energy is uniform and the cutting quality is good) Check if the lens in the laser transmission process is dirty, or if the lens is dirty, and the lens has small cracks that are not easily visible to the naked eye, which will affect the transmission of the laser. This is followed by an adjustment of the process parameters. If the burrs generated after laser cutting of stainless steel have a certain hardness, it is very difficult to take time and affect the appearance. It is best to solve it from the root cause. First of all, the purity of the auxiliary gas is high, and it is very important to change the purity of a gas supplier with a better quality. Then the anti-cutting parameters are adjusted to the best, the focal length, cutting speed, power, running time, etc. Sub-adjustment (please let the professional engineer debug), the parameters provided by the machine can not cut the delicate workpiece, so only after many attempts can the burr be minimized

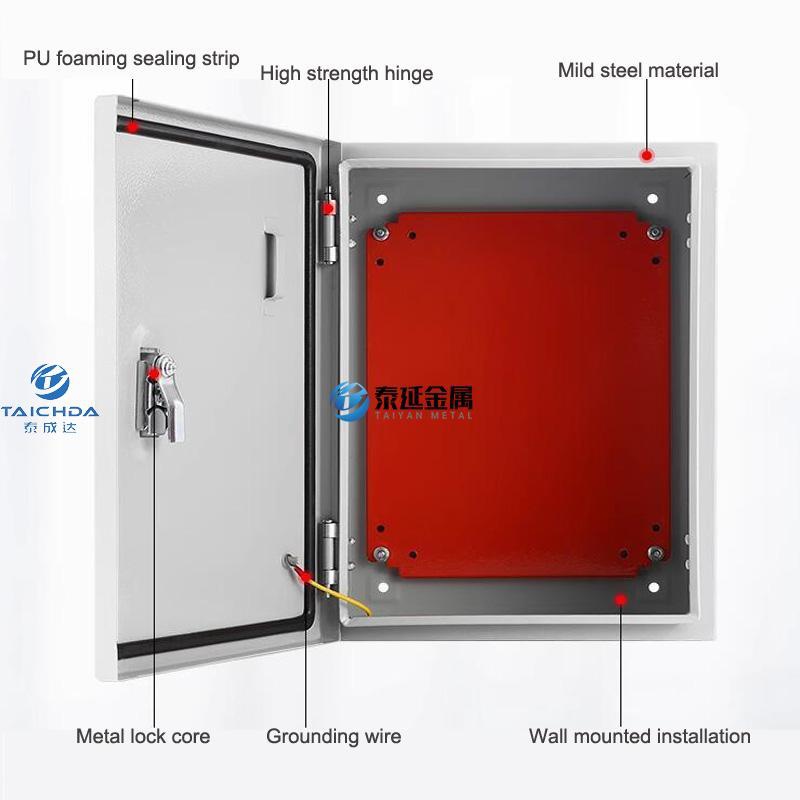

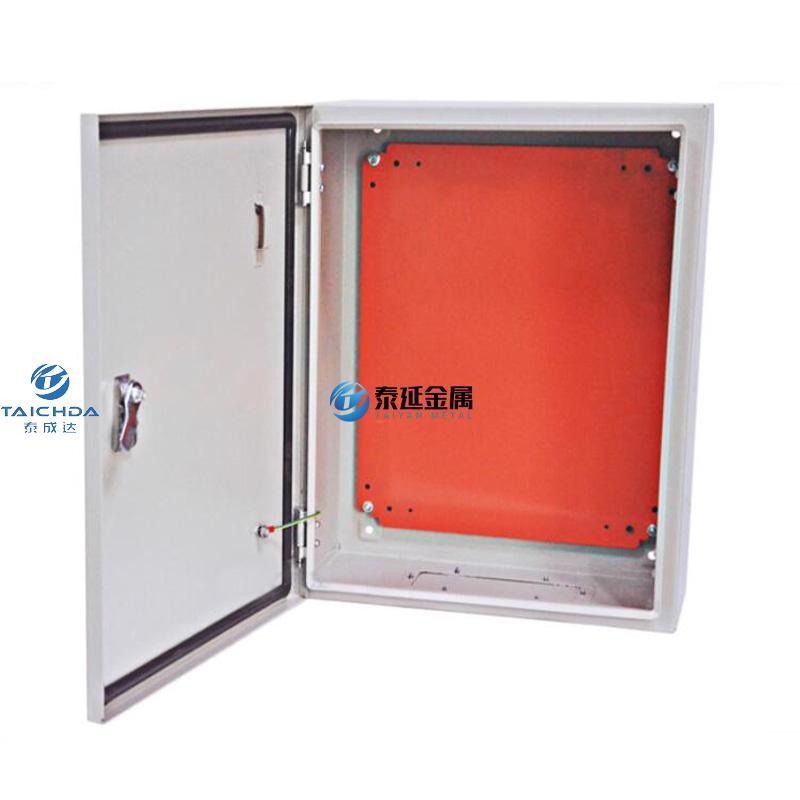

Waterproof NEMA Type Metal Enclosures IP65 IP66

IP65 Wall Mounted Enclosure,Painted in RAL7032/7035, Mounting plate: zinc coated or RAL2000 in textured IP65 NEMA 4 for single door boxes
  • Item NO.:

    0072-ECPB-TCH
  • Product Details



Specifications

IP65 Wall Mounted Enclosure,Painted in RAL7032/7035,IP65,Door&Body:1.2,M.P:1.5mm,till size 800mm,Door&Body:1.5mm M.P:2.0mm


Wall Mounting Enclosure(distribution box)


Enclosure& door: sheet steel 1.2mm till size JX6-820 then 1.5mm

-Mounting plate: sheet steel 1.5mm till size JX6-820 then 2.0mm


Surface Finish

-Enclosure & door: thermosetting expoxy polyester powder coating in textured RAL7032/RAL7035

-Mounting plate: zinc coated or RAL2000 in textured

Protection degree

-IP65 NEMA 4 for single door boxes




Supply includes

-Mounting plate

-gland plate and sealing gasket

-locking system

-screws for earthing


-fixing material


Waterproof NEMA Type Metal Enclosures IP65 IP66
