Sheet Metal Exell T6 Explosion Proof Electric Control Boxes

Product Details



Explosion proof mark: ExdeIBT4/T5/T6, ExdeIICT4/T5/T6, DIP A20 TA, T4/T5/T6;

Rated voltage: AC220/380V, non standard voltage: 12V/24V/36V/127V/660V;

Current of main switch: 10A - 800A; switch current: 1A - 630A;

Protection grade: IP54/IP55/IP65;

Thread specification: DN15-DN100/G1/2-G4 "

The introduction of line specifications: diameter 6mm-80mm; pinout specifications: diameter 6mm-80mm;

Introduce derivative direction: on the mobility, lower in and out (not restricted according to customer requirements)

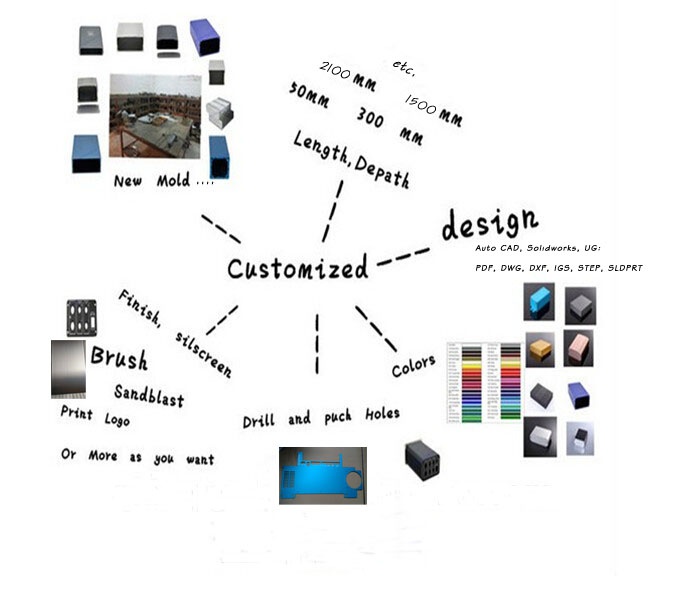

Custom sheet metal enclosure

Specifications:

Part Number

Enclosure Dimensions

Mounting plate dimensions

0008-ECPB-TCH

300 ×400 ×200

250 × 350

0009-ECPB-TCH

400 ×400 ×200

350 × 350

0010-ECPB-TCH

400 ×500 ×200

350 × 450

0011-ECPB-TCH

400 ×600 ×200

350 × 550
